Energy & Utilities: Grid Operations Under Constraints¶

Case study → energy & utilities

Grid decisions need safety gates and replayable traces.

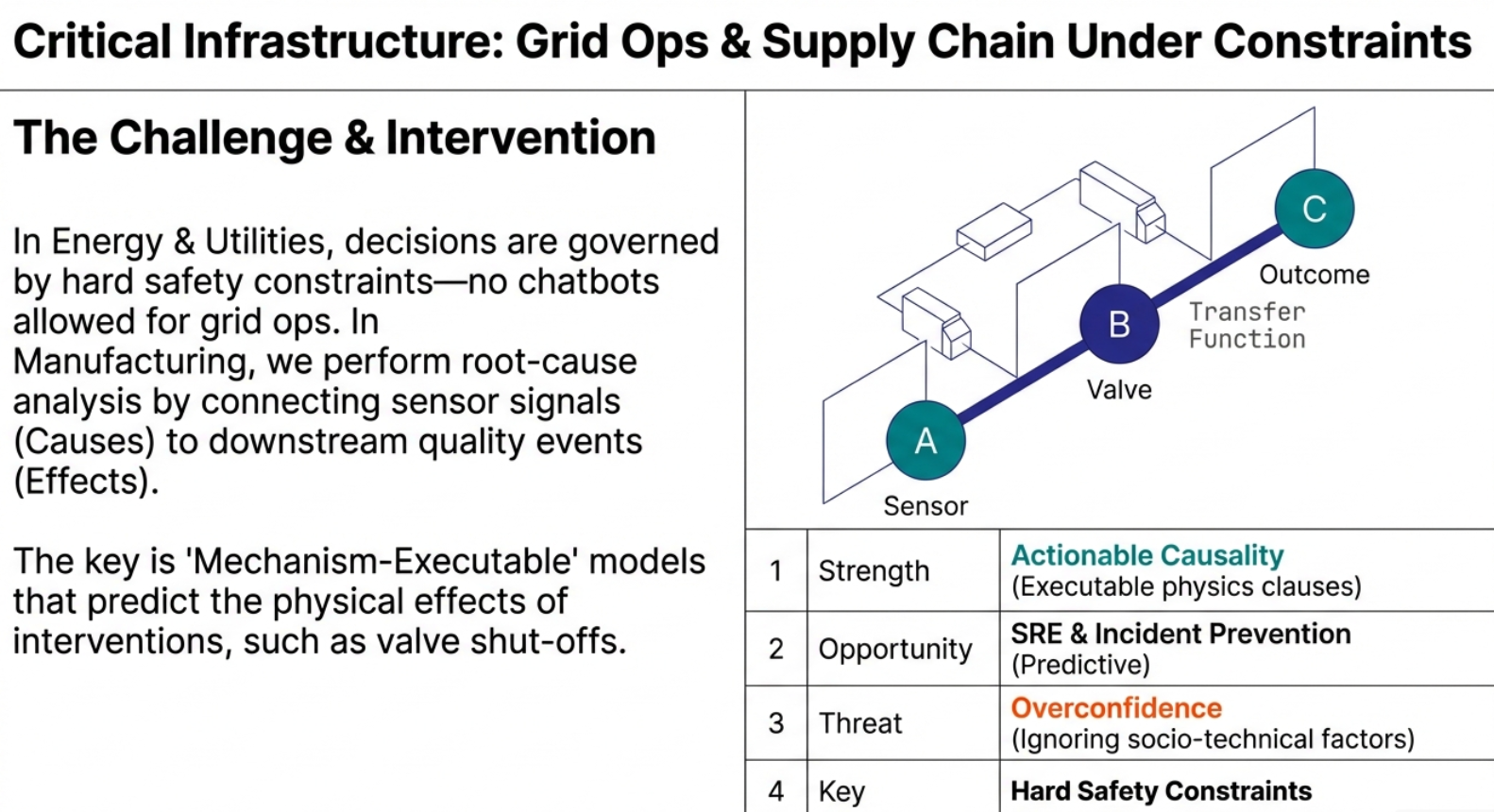

Utilities operate under strict safety and reliability constraints. A decision-support system must enforce what actions are allowed, and provide a trace that survives audits and post-incident reviews.

Start a Conversation Constraints & SHACL Architecture Blueprint

The question¶

Can AI support grid operations (outage response, switching plans, capacity constraints) while preventing unsafe actions, and producing decision artifacts that can be reviewed and replayed?

Failure modes to avoid¶

Unsafe suggestions

Recommending actions that violate safety procedures or operating limits.

Non-local constraints

Switching constraints depend on topology, equipment state, and work orders across systems.

Evidence gaps

Telemetry and tickets disagree; the system must be able to abstain and request missing data.

Unreplayable incidents

Postmortems fail if reasoning exists only as transient chat output.

Topology misread

Small modeling errors (feeds, ties, islands) can flip which actions are safe and permissible.

Work-order conflicts

Planned maintenance and switching constraints can contradict proposed actions unless integrated and enforced.

What changes with governed causal memory¶

We connect topology, telemetry, work orders, and procedures into a constraint-gated reasoning layer.

The result is a recommended plan with evidence paths — or a deterministic escalation.

flowchart TB
%% Styles (brModel Standard)
classDef i fill:#D3D3D3,stroke-width:0px,color:#000;
classDef p fill:#B3D9FF,stroke-width:0px,color:#000;
classDef r fill:#FFFFB3,stroke-width:0px,color:#000;
classDef o fill:#C1F0C1,stroke-width:0px,color:#000;
classDef s fill:#FFB3B3,stroke-width:0px,color:#000;

I_A(["🚨 Alarm / outage"]):::i

R_Topo(["🗺️ Topology model<br>(versioned)"]):::r
R_Tel(["📈 SCADA / telemetry snapshot"]):::r
R_OMS(["🎫 OMS tickets + calls"]):::r
R_WO(["🛠️ Work orders + permits-to-work"]):::r
R_Proc(["📜 Switching procedures<br>(approved)"]):::r

P_Rec("🧩 Reconcile state"):::p
G_State{"State consistent?"}:::s
S_Ask(["🛑 Request missing data / reconcile conflicts"]):::i
R_State(["🧾 State snapshot<br>(topology + telemetry)"]):::r

P_E("🕸️ Expand evidence graph"):::p
R_Path(["🧭 Fault hypotheses<br>(evidence per edge)"]):::r
G_Ev{"Evidence sufficient?"}:::s

P_Plan("🔀 Propose switching plan"):::p
R_Plan(["🔀 Plan draft<br>(step sequence)"]):::r
P_Sim("🧪 Simulate load/flow + safety"):::p
G_Sim{"Simulation ok?"}:::s

P_G("🔒 Safety + operating constraints"):::p
G_PTW{"Permit conflicts?"}:::s
G_OK{"Gates pass?"}:::s

O_R(["✅ Recommended plan + trace"]):::o
S_X(["🛑 Abstain + escalate"]):::i
R_Tr(["🧾 Plan trace bundle<br>(evidence + sims + limits)"]):::r

I_A --> P_Rec
R_Topo --> P_Rec
R_Tel --> P_Rec
R_OMS --> P_Rec
R_WO --> P_Rec

P_Rec --> G_State
G_State -->|"no"| S_Ask
G_State -->|"yes"| R_State --> P_E --> R_Path --> G_Ev

G_Ev -->|"no"| S_Ask
G_Ev -->|"yes"| P_Plan --> R_Plan --> P_Sim --> G_Sim

G_Sim -->|"no"| S_X
G_Sim -->|"yes"| P_G --> G_PTW

R_Proc --> P_G
G_PTW -->|"yes"| S_X
G_PTW -->|"no"| G_OK

G_OK -->|"yes"| O_R --> R_Tr
G_OK -->|"no"| S_X --> R_Tr

%% Clickable nodes
click P_G "/methodology/constraints/" "Constraints & SHACL"

⚡ Grid ops becomes decision-grade when the system builds artifacts (state snapshot, hypotheses, plan draft, simulation results) and enforces explicit gates: state consistency, evidence sufficiency, simulation validity, permit conflicts, and safety/operating constraints. When gates fail, escalation is deterministic — not “best effort”.

Diagram: typical evidence path (illustrative)¶

flowchart TB
%% Styles (brModel Standard)
classDef i fill:#D3D3D3,stroke-width:0px,color:#000;
classDef p fill:#B3D9FF,stroke-width:0px,color:#000;
classDef r fill:#FFFFB3,stroke-width:0px,color:#000;
classDef o fill:#C1F0C1,stroke-width:0px,color:#000;
classDef s fill:#FFB3B3,stroke-width:0px,color:#000;

R_Tel(["📈 Telemetry snapshot"]):::r
R_Topo(["🗺️ Topology version"]):::r
P_F("🧭 Fault hypothesis"):::p
R_H(["🧭 Hypothesis artifact"]):::r

P_Sim("🧪 Simulation"):::p
R_Sim(["📎 Simulation results"]):::r
G_Sim{"Simulation ok?"}:::s

P_C("🔒 Constraint checks"):::p
R_Cons(["📎 Constraint set<br>(limits + procedures)"]):::r
G_Lim{"Limits pass?"}:::s

P_S("🔀 Switching plan"):::p
R_Plan(["🔀 Plan steps"]):::r
R_TR(["🧾 Trace bundle<br>(why each step is safe)"]):::r
O_Out(["✅ Operator-ready plan"]):::o

R_Tel --> P_F
R_Topo --> P_F
P_F --> R_H --> P_Sim --> R_Sim --> G_Sim
G_Sim -->|"no"| R_TR
G_Sim -->|"yes"| P_C

R_Cons --> P_C
P_C --> G_Lim
G_Lim -->|"no"| R_TR
G_Lim -->|"yes"| P_S --> R_Plan --> R_TR --> O_Out

🧾 A “path” is not one arrow: it’s telemetry + topology → hypothesis artifact → simulation results → constraint set → plan steps → trace. If simulation fails or limits don’t pass, the trace must show where and why — so reviews are fast and defensible.

Diagram: switching plan gates (topology, authorization, constraints)¶

flowchart TB
%% Styles (brModel Standard)
classDef i fill:#D3D3D3,stroke-width:0px,color:#000;
classDef p fill:#B3D9FF,stroke-width:0px,color:#000;
classDef r fill:#FFFFB3,stroke-width:0px,color:#000;
classDef o fill:#C1F0C1,stroke-width:0px,color:#000;
classDef s fill:#FFB3B3,stroke-width:0px,color:#000;

I_Plan(["🔀 Proposed switching plan" ]):::i
R_Topo(["🗺️ Topology model<br>(versioned)" ]):::r
R_State(["📈 State snapshot<br>(telemetry + breakers)" ]):::r
R_PTW(["🛠️ Permits-to-work<br>(active)" ]):::r
R_Lim(["📎 Operating limits<br>(thermal, voltage)" ]):::r
R_Auth(["🔐 Authority/roles" ]):::r
R_Sim(["📎 Simulation results" ]):::r

P_Topo("🧩 Validate topology"):::p
G_Topo{"Topology correct?"}:::s

P_Iso("🧪 Verify isolation points"):::p
G_Iso{"Isolation verified?"}:::s

P_BF("🧭 Check backfeed scenarios"):::p
G_BF{"Backfeed risk?"}:::s

P_PTW("🛠️ Check permit conflicts"):::p
G_PTW{"Permit conflicts?"}:::s

P_Auth("🔐 Validate authorization"):::p
G_Auth{"Authorized?"}:::s

P_Lim("🔒 Evaluate limits"):::p
G_Lim{"Operating limits pass?"}:::s

O_Do(["✅ Execute / recommend" ]):::o
O_Hold(["⏸️ Hold + verify" ]):::o
S_Esc(["🛑 Escalate to operator review" ]):::s
R_Tr(["🧾 Plan trace bundle<br>(inputs + gates + simulations)" ]):::r
O_Check(["✅ Execution checklist<br>(operator-ready)" ]):::o

I_Plan --> P_Topo
R_Topo --> P_Topo
R_State --> P_Topo
P_Topo --> G_Topo
G_Topo -->|"no"| S_Esc --> R_Tr
G_Topo -->|"yes"| P_Iso

R_State --> P_Iso
P_Iso --> G_Iso

G_Iso -->|"no"| O_Hold --> R_Tr
G_Iso -->|"yes"| P_BF

R_Sim --> P_BF
P_BF --> G_BF

G_BF -->|"yes"| S_Esc
G_BF -->|"no"| P_PTW

R_PTW --> P_PTW
P_PTW --> G_PTW

G_PTW -->|"yes"| S_Esc
G_PTW -->|"no"| P_Auth

R_Auth --> P_Auth
P_Auth --> G_Auth

G_Auth -->|"no"| S_Esc
G_Auth -->|"yes"| P_Lim

R_Lim --> P_Lim
R_Sim --> P_Lim
P_Lim --> G_Lim

G_Lim -->|"yes"| O_Do --> R_Tr --> O_Check
G_Lim -->|"no"| S_Esc

🚦 This is why “AI suggestions” are unsafe by default: a plan must pass gates for topology correctness, isolation verification, backfeed risk, permit conflicts, authorization, and operating limits. When any gate fails, escalation is mandatory — and the trace shows exactly which gate failed and why. Product: a plan trace bundle plus an operator-ready execution checklist.

Outputs¶

Safe-by-design recommendations

Plans that are validated against procedure and operating constraints.

Incident traces

Evidence, rules applied, decisions, and escalations captured as artifacts.

Faster postmortems

Replayable reasoning reduces time-to-resolution and improves learning.

Governed automation boundaries

Clear lines between auto-suggest, auto-execute, and mandatory human review.

Constraint library

Operating limits, procedures, and exception rules encoded as enforceable checks — versioned like any other policy.

Operator-ready rationale

Not just a plan, but why it is safe: which evidence and constraints justify each step of the recommendation.
